Features & Applications

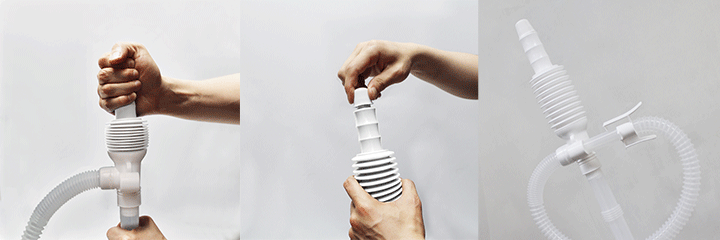

Suction type : Manual up and down type
Bung adaptor Inner Dia : 50mm(1.97″)
Applicable supply tank height : 300mm(11.8″)~390mm(15.4″)
Applicable liquids : Kerosene, Diesel, Gasoline, Water(not safe for drinking), Light oils, Chemical insecticides, Soaps, Detergents,
Mild acids, Anti-freeze, Liquid waxes Non corrosive, Non toxic plastic material construction
Specifications
Total Length : 650mm(25.6″)
Suction tube Length : 425mm(16.7″)
Suction tube Outer Dia. : 25mm(0.98″)
Discharge Tube Length : 660mm(26.0″)
Discharge Tube Outer Dia. : 19mm(0.75″)
Head Outer Dia. : 60mm(2.36″)
Delivery Volume : About 12LPM(3.2GPM)
Main Material : P.E
About 150g(5.3Oz)
