Features & Applications

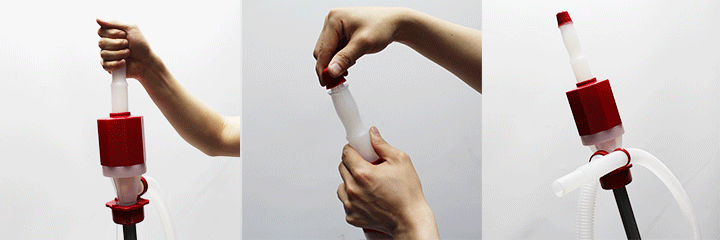

Suction type : Manual up and down piston type
Applicable liquids : Kerosene, Diesel, Gasoline, Water(not safe for drinking), Light oils, Chemical insecticides, Soaps, Detergents, Mild acids, Anti-freeze, Liquid waxes Non corrosive, Non toxic plastic material construction, Light-weight
Depth adjustable with 30mm(1.20″) long adaptor for standard 50.8mm( 2″) drum bung adaptor
DO NOT use this pump for transferring the following liquids : ACETON, BENZEN, CREOSOL,ETHYL, PHENOL, METHYL ETHYLE, Concentrated CAUSTIC SODA LIQUID, NITRIC ACID, HYDROCHLORIC ACID, SULFURIC ACID, TOLUENE, etc.
Specifications
Total Length : 1,150mm(45.3″)
Suction tube Length : 850mm(33.5″)
Suction tube Outer Dia. : 25.5mm(1.0″)
Discharge Tube Length : About 1,200mm(47.2″)
Discharge Tube Outer Dia. : 22.5mm(0.89″)
Head Outer Dia. : 83.5mm(3.29″)
Delivery Volume : About 21LPM (5.5GPM)
Main Material : P.E
About 365g(12.9Oz)
